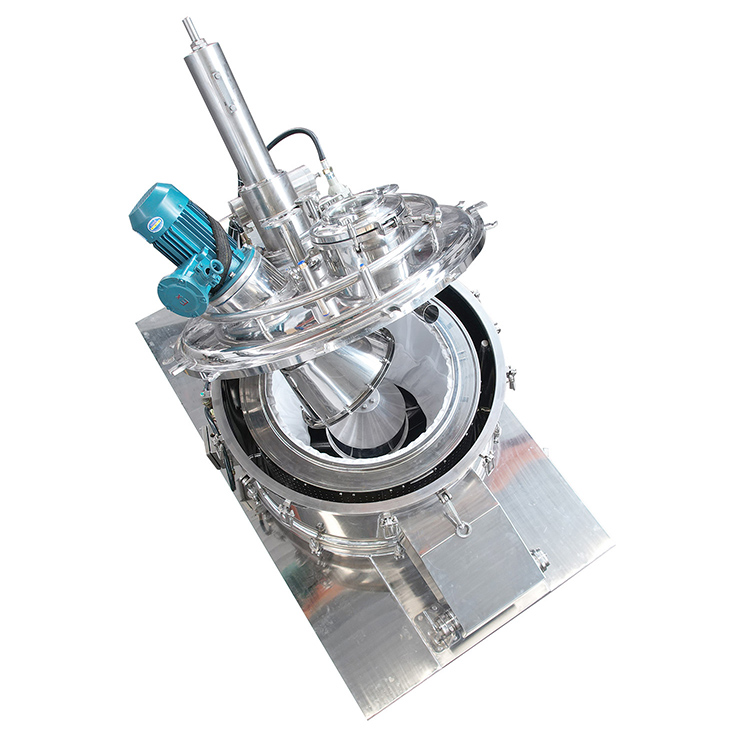

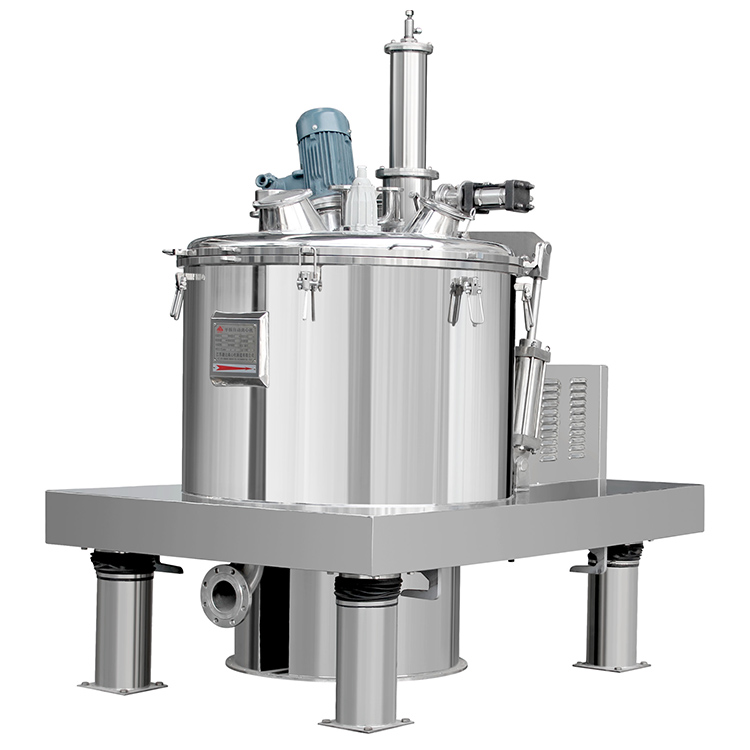

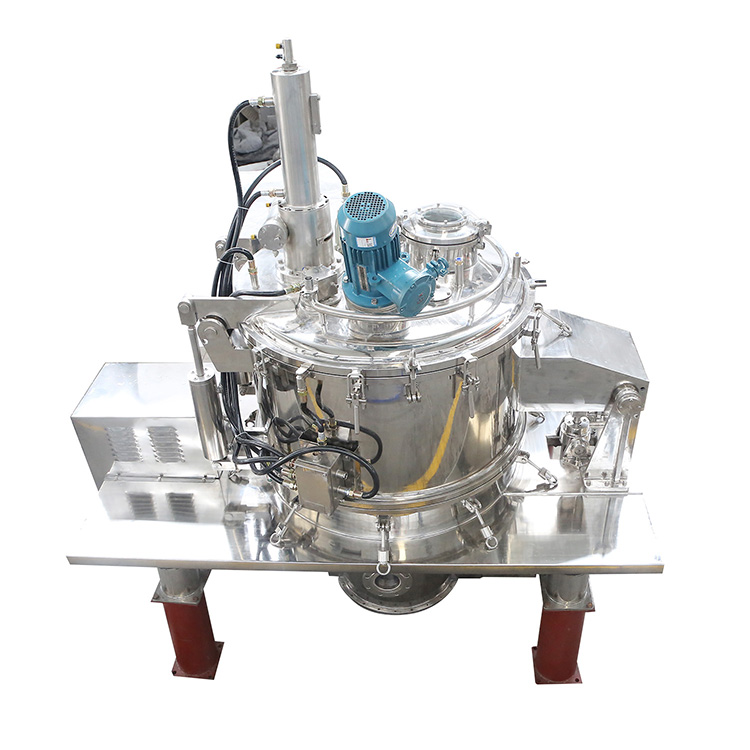

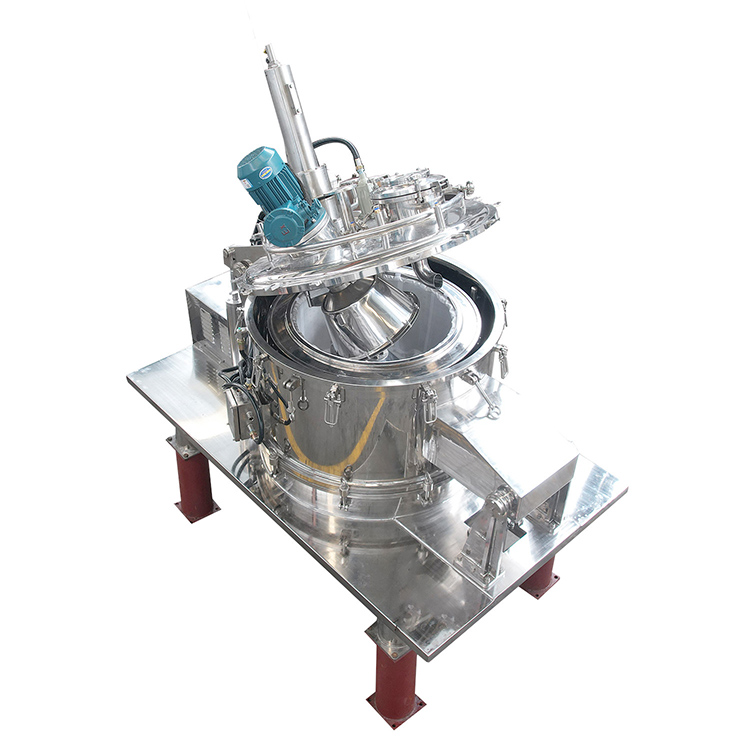

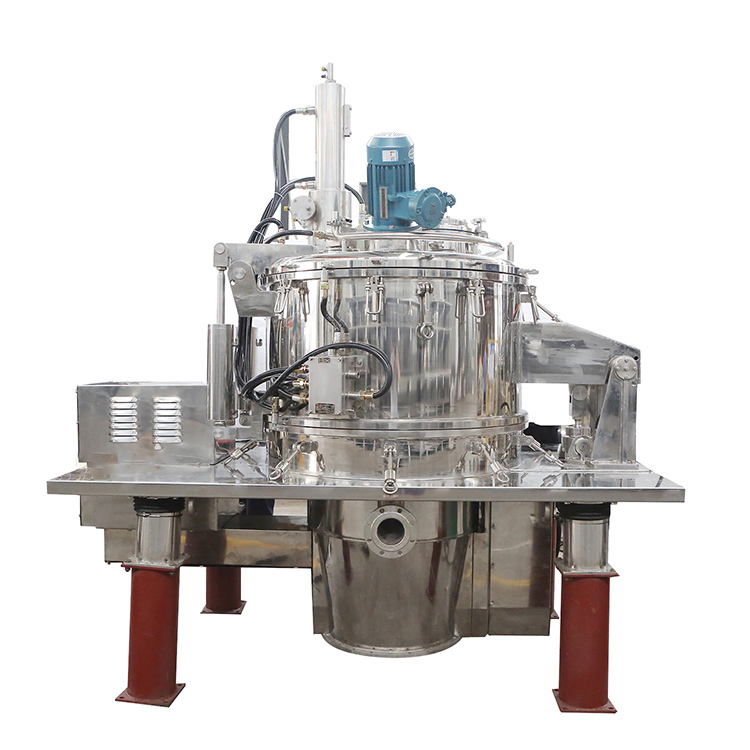

PLQ Series Fully Automatic Bag-pulling Centrifuge

PLQ Series Fully Automatic Bag-pulling Centrifuge

Main Features

■ Automatic frequency converter to control speed.

■ It has all advantages of common vertical scraper down discharging centrifuge.

■ Full-automatic operation for hanging bag falling off and reset.

■ The filter bag can move up and down inside the drum to produce oscillation effect and remove the remnant filter cake throughly.

■ Big clamshell or shell whole reversible type are achievable according to users' demands.

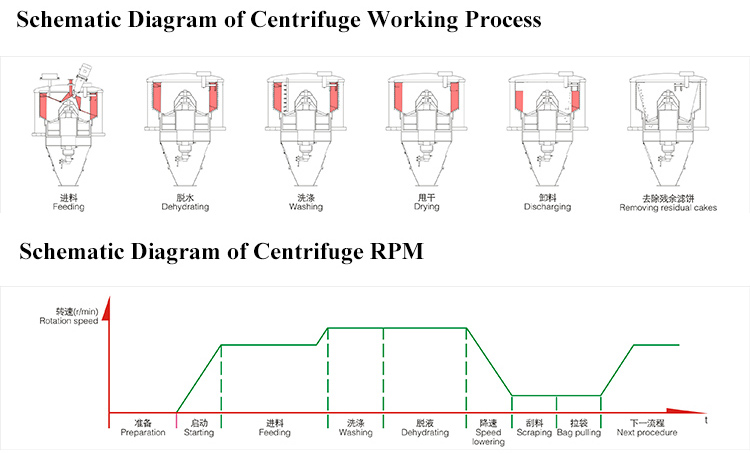

Working Principle

During the process of discharging, the scraper acts, under the impact of which most material are discharged through the blanking hole on the bottom of drum to the outside. The remnant material layer will generate oscillation effect by the influence of automatic pulling bag mechanism inside the drum and then the remnant material layer will be removed.

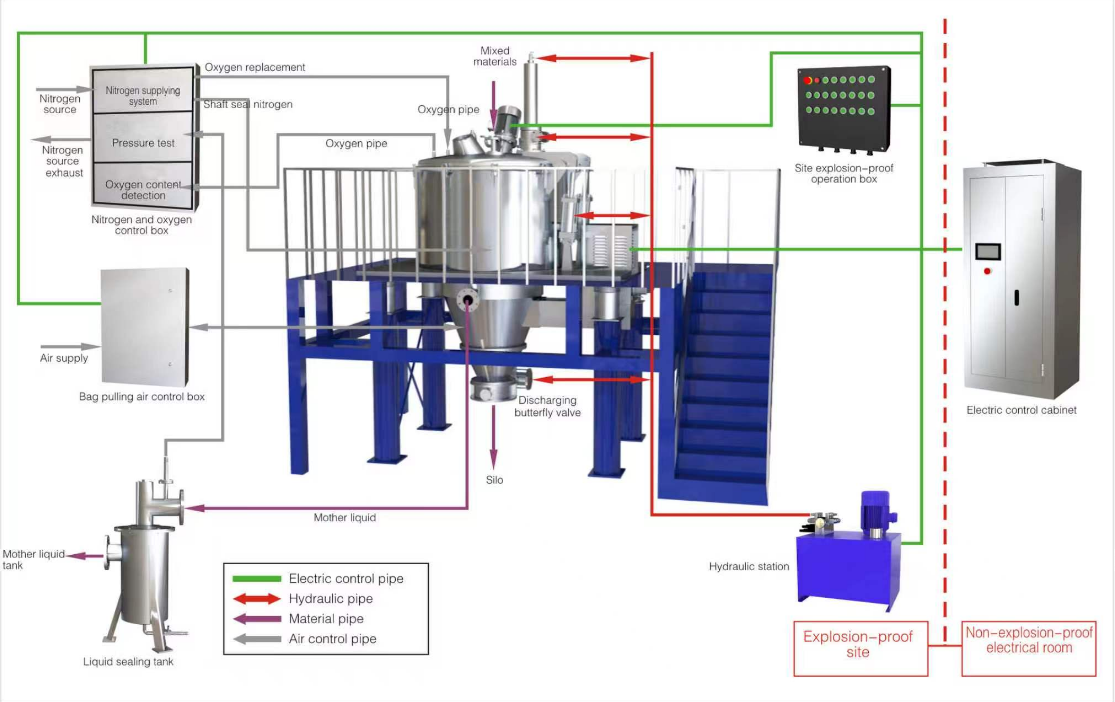

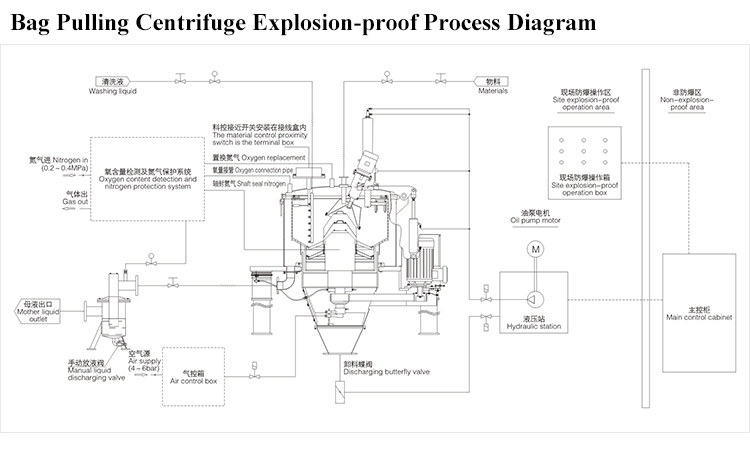

Explosion-Proof Working Principle

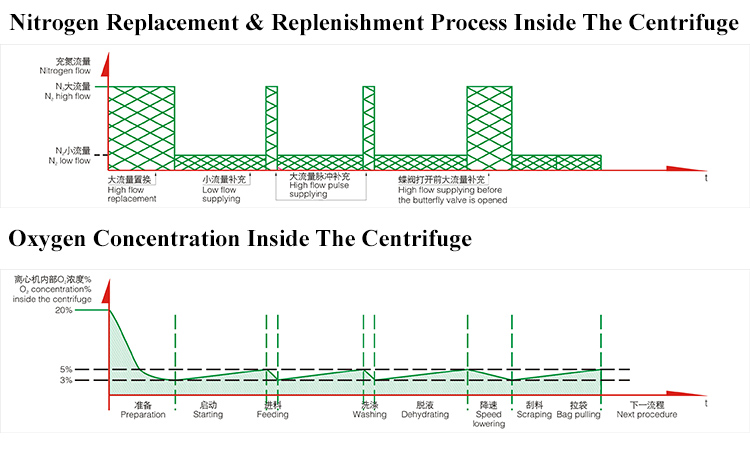

The explosion-proof bag pulling centrifuge is manufactured according to the explosion-proof standard. Before the centrifuge is started, high flow nitrogen replacement is carried out. The gas inside the centrifuge is ensured to be insert through adopting oxygen content detection, pressure test and other ways, so as to meet the centrifuge running requirements. After the equipment runs, the oxygen content is monitored in a dynamic manner and high flow nitrogen replacement or low flow low pressure nitrogen supplying is carried out, so as to ensure that the equipment meets the explosion-proof running requirements.
