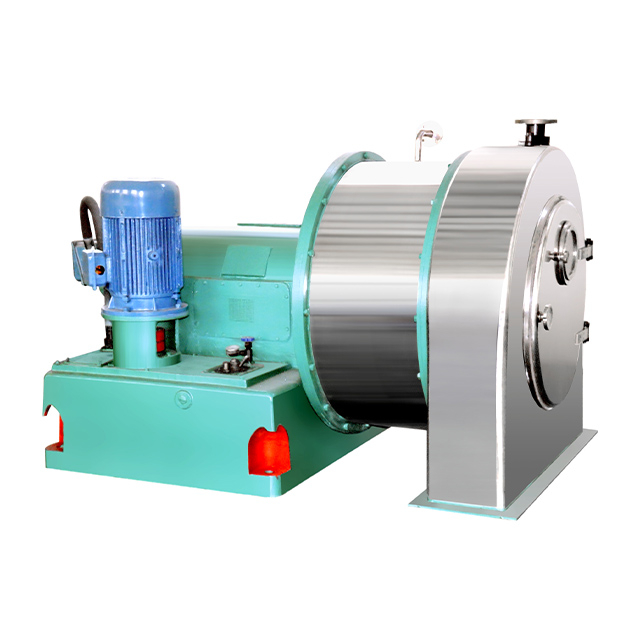

HY Horizontal Piston Pusher Centrifuge

Product Structure Principle

The main motor drives the bowl to turn at full speed. The materials are continuously introduced from the feeding pipe and are evenly spread onto the inner filter screen wall of the bowl. Under the action of centrifugal force, after passing through the filter screen and bowl filtration pores, the liquids are discharged outside the machine from the liquid discharging pipe at the housing. The solids are retained in the bowl and form circular filter cakes. When turning at the same speed as the pushing disc, the bowl is pushed by the piston to continuously make axial reciprocating movements. The filter cakes are pushed to continuously move outside the bowl and discharged out of the machine from the bottom of the housing.

Product Features And Uses

The HY series centrifuge is a filtering centrifuge with horizontal piston pushing and continuous operation. The centrifuge can carry out feeding, separating, washing, discharging, etc. continuously when it is running at full speed. With such features as continuous operation, stable running, convenient operation, high production capacity, good washing effect, low cake moisture content and etc., it is suitable for separation of suspensions containing solids with granularity higher than 0.1mm and concentration higher than 40%. It is widely used in chemical industry, chemical fertilizer, alkali making, salt making and other industries, and is especially suitable for solid-liquid separation of ammonium bicarbonate, ammonium chloride, Glauber's salt, cotton seed pickling, etc.

Notes

■The technical parameters in the product instructions shall prevail.

■During consultation, customers should specify material features, parameters, service conditions and other requirements.

■According to special requirements of customers, we can adopt individual design and manufacturing.

Materials: Parts that contact materials can be made of ordinary stainless steel, special stainless steel, titanium alloy, etc.

Motor type: ordinary or explosion-proof single-speed motor, etc.

Selection range of filter screen interval width: 0.1-0.4mm

Design and manufacturing can be made according to the GMP standard.

Other technical requirements can be negotiated.

Technical Data:
