FZH3000

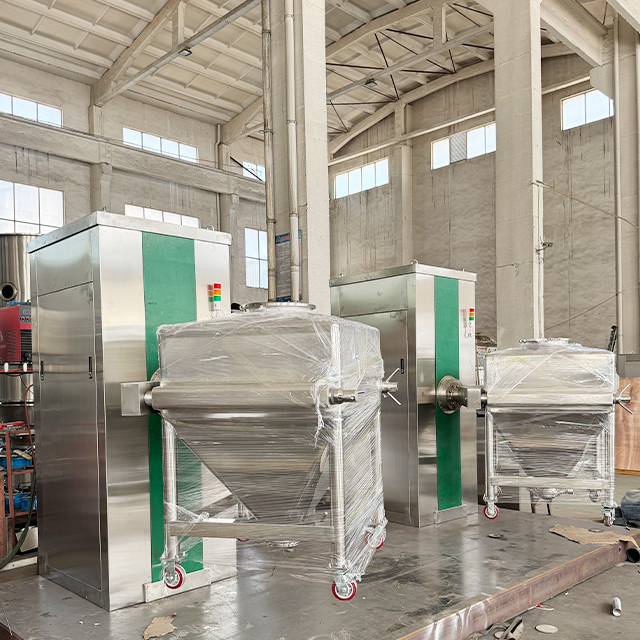

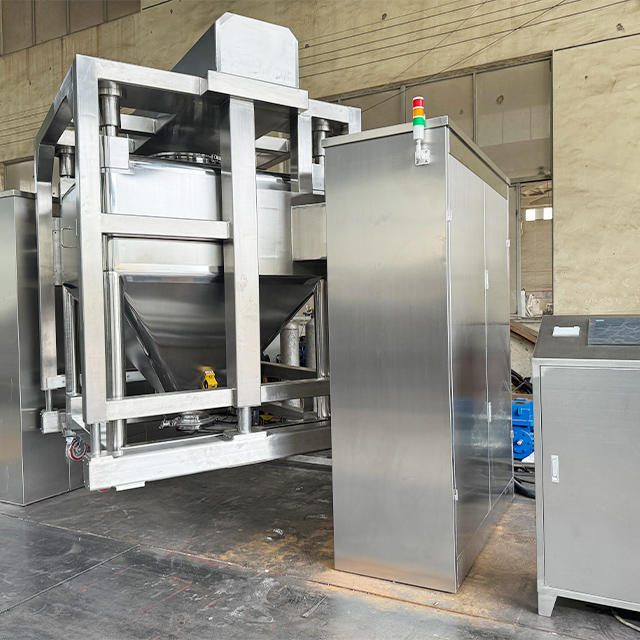

This machine is a novel material mixer widely used in pharmaceutical, chemical, metallurgy, food, light industry, feed and other industries. This machine can mix powder or granules very evenly, so that the mixed materials can achieve the best effect.
1. The whole machine has novel design, compact structure, beautiful appearance, mixing uniformity of 99%, and volumetric charging coefficient of 0.8.
2. Low rotation height, smooth operation, reliable performance and easy operation.
3. The inner and outer walls of the barrel are mirror-polished, with no dead corners, easy discharging, easy cleaning, no cross-contamination, and comply with GMP requirements.

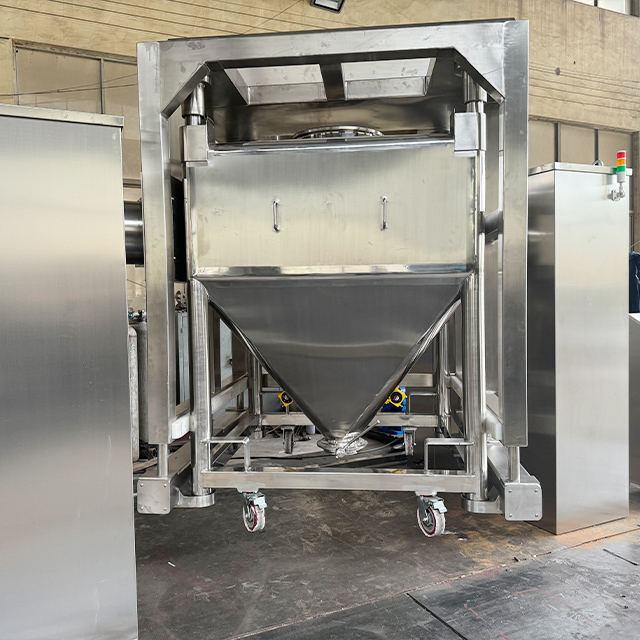

The materials are loaded into a square cone-shaped closed mixing barrel. The symmetrical axis of the mixing barrel forms an angle with the rotation axis. Different groups of materials move in three-dimensional space in the closed mixing barrel, resulting in strong flipping, diffusion and shrinkage effects to achieve the best results. Blend effect.
Model | Model 300 | Model 500 | Model 1000 | Model 1500 | Model 2000 | Model 3000 |
Mixing barrel volume (L) | 300 | 500 | 1000 | 1500 | 2000 | 3000 |
Maximum charging volume (L) | 240 | 400 | 800 | 1200 | 1600 | 2400 |
Maximum charging weight (kg) | 150 | 250 | 500 | 750 | 1000 | 1500 |
Spindle speed (r/min) | 14 | 13 | 12 | 10 | 8 | 6 |
Motor power (kw) | 1.5 | 2.2 | 4 | 5.5 | 7.5 | 11 |
Weight (kg) | 500 | 700 | 1000 | 1500 | 2000 | 3000 |
Overall dimensions (L × W × H) (mm) | 1850×1280×1980 | 2200×1530×2220 | 2800×2000×2820 | 2930×2300×2950 | 3100×2460×3160 | 3350×2820×3800 |
